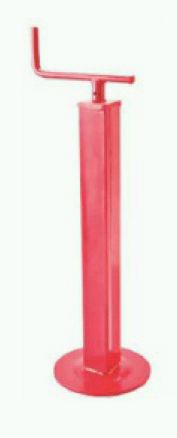

Metal Parking Jack Without Gear, For Industrial

MOQ100 Piece(s)
MaterialMetal
ConditionNew
ApplicationIndustrial
Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

Keeping in-line with the globally accepted standards, the raw material used for production is of high-grade. Thus, we always keep a check on the final product to make sure that the same is defect free. Stay confident for the delivery schedules with us as we are recognized for making on-time deliveries.

View More Details

Send Enquiry

Product Details

Graphical Images

Download Detail File : Click Here

Technical Data

Part Number	A	B	C	D	T	H	Stroke	Load Cap.
JPJ30040	40	300	95	115	2	430	150	250
JPJ40040	40	400	95	115	2	530	175	250
JPJ50040	40	500	95	115	2	630	200	250
JPJ30050	50	300	150	135	3	450	150	500
JPJ40050	50	400	150	135	3	550	175	500
JPJ50050	50	500	150	135	3	650	200	500
JPJ40060	60	400	150	135	3	550	175	700
JPJ50060	60	500	150	135	3	650	200	700
JPJ40070	70	400	150	180	3	550	175	1000
JPJ50070	70	500	150	180	3	650	200	1000
JPJ50080	80	500	150	180	4	650	200	1500
JPJ60080	80	600	150	180	4	750	250	1500
