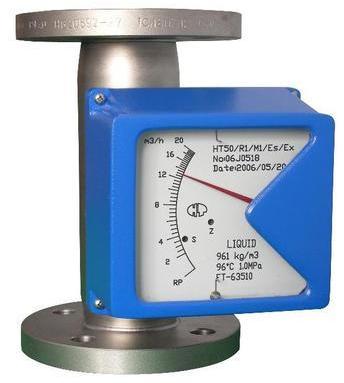

Metal Pipe Float Flow Meter, Brand Name : SIKE

LZ Metal pipe float flow meter (also called metal rotor flow meter) in LZZDH and LZZD divides into two big series, has a simple structure, reliable operation, wide applicable range, high precision, convenient installation, etc. Compared with glass rotor flowmeter, the series of flowmeter with high pressure, high temperature resistant, safe and reliable, simple reading, etc. And can be applied to opaque medium and corrosive medium flow measurement, instrument pipe body and the flange of stainless steel (1 cr18ni9ti) or 316 lday, the United States, crl8ni12mo2ti (1). LZZDH series: conventional type of orifice plate, the float is made of stainless steel, anti-corrosion type of orifice, float and pipe body lined with PTFE and F46 anti-corrosion materials. LZZD series: float, tapered tube of stainless steel, this series of no corrosion.
Metal pipe float flow meter is suitable for small diameter and low flow velocity within DN200 medium flow measurement; Reliable operation, small amount of maintenance, long service life; Straight pipe for the request is not high; A wide flow than 10:1. Double line large LCD display, optional site, according to the instantaneouscumulative flow can take backlit uniaxial sensitive indicator; Non-contact magnetic coupling transmission; All-metal structure, metal tube rotameter is suitable for high temperature, high pressure and strong corrosive medium; Can be used for flammable, explosive or dangerous situation; Optional two wire, batteries, communication power supply way; Multiple parameter calibration function; With data recovery, data backup and power-fail protection function.
LZZDH series by the instrument, standard orifice, conical tube body of float and magnetic switch apparatus.
LZZD series by instrument pipe body, the standard of float, tapered tube and magnetic conversion apparatus.
