Metal Processing Machinery

We are offering metal processing machinery

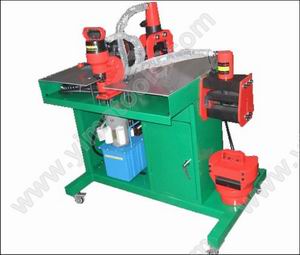

model: vhb-200a multi-bus machine
product name:bus row processing machine,copper processing equipment
features: manual deployment of directional control valve is clearly the function of the working machine; comes with a foot pedal one person can operate;
ping li accurate bending angle. Copper / aluminum row will not have complete tear after bending state, to ensure that copper / aluminum row of conductive safety and performance;
package of equipment including electric hydraulic pump, cut row machine, punching machine, bending machine and embossing machine row, all the integration work to install the mobile bus. Conducive to the flow in the workshop or field operations;
purpose
copper and aluminum row shearing, punching, ping li bending, embossing;
transformer, switch cabinet assembly;
the installation of power transmission project;
related information
row machine work cut output: 23ton;
punching machine work output: 31ton;
work output bent row machine: 20ton;
embossing machine working output: 55ton;
technical parameters
voltage (v): 220;
working hydraulic (kgf/cm2): 700;
and ability to cut material
copper / aluminum row: 150 mm × 12 mm;
materials and ability to bend
curved copper / aluminum row: 200 mm × 12 mm;
opening material and capacity
copper t12.5 mm: ø9 mm-ø21 mm;
aluminum row t12.5 mm: ø6 mm-ø21 mm;
embossed material and capacity
for bus (mm): ≤ 150 × 12.5;
working stroke (mm): 26: work pressure (t): 55;
weight (kg): 200
standard accessories: punching die 90 ° v-type bending mold;
