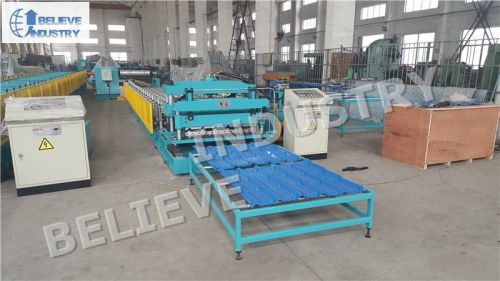

Metal Roof Tile Roll Forming Machine

This glazed tile roll forming machine produces metal roof tiles which are more and more popular using as roofing cladding. This machine consisted of decoiler, guiding device, roll forming parts, tile steps pressing device, cutting device, hydraulic station and eclectric control system. All famous brand eclectric parts ensures the perfect and stable performance of the machine. Also, it is easy to operated and maintained.
main specifications:
♦ coil material information
1. Thickness: 0.3-0.8mm
2. Feeding width: custom-made
3. Yield strength: 250-350mpa
4. Applicable material: galvanized steel, color steel, aluminium
♦ 5t hydraulic uncoiler
1. Maximum capacity: 5t
2. Coil width: maximum 1500mm
3. Uncoiler i.d.: 580mm
4. Uncoiler o.d.: 1350mm
♦ roll forming machine:
1. Forming station: 12-24 stations
2. Roller material: gcr15 steel, hrc 58-62
3. Diameter of shaft: 76mm
4. Shaft material: high grade 45# steel
5. Drive type: chain wheel drive
6. Main power: 5.5kw
7. Forming speed: 12-18mmin
♦ cutting device:
1. Cutting type: hydraulic cutting
2. Material of cutting blade: cr12mov
3. Cutting tolerance: 10m+-0.5mm
♦ electrical control system:
1. Plc: panasonic brand
2. Encoder: ormon brand
3. Frequency converter: yaskawa brand
4. Touch screen: mcgs
5. Operation type: touch screen and button
♦ product collecting table:
1. Type: simple non-powered
2. Function: to support finished products
