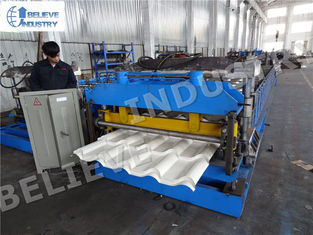

Metal Roof Tile Roll Forming Machine - Yx35-260-1040

₹ 35.30 Lakh / Set

MOQ1 Set(s)
Brand NameBelieve Industry
Production Capacity60 sets per quarter
Total Carbohydrate2 years for all the parts of the machine
After-Sales Service ProvidedCommission and Installation: Free
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameBelieve Industry
Production Capacity60 sets per quarter
Total Carbohydrate2 years for all the parts of the machine
After-Sales Service ProvidedCommission and Installation: Free
Model NumberC 100-350
Place of OriginJIANG SU

we are offering Metal Roof Tile Roll Forming Machine - Yx35-260-1040.
Description:
this metal roof tile roll forming machine can produce metal roof tiles. Main components of this machine are decoiler, guiding and leveling device, roll former, hydraulic cutting device, collecting table, hydraulic station, etc.
technical parameters - yx35-260-1040
raw material carbon steel, galvanized steel, q235
material thickness 0.3-0.8mm
material width depend on specific profile
diameter of shaft 76mm
material of shaft 45# steel
material of rolls
gcr15 over quenching hrc 58-62°
main power 7.5kw
forming speed 3-4mmin
forming station 18 stations
cutting type hydraulic cutting
cutting blade
cr12 mov
