Metal Seated Ball Valves VW-64Q Dn 15 ~ Dn 300

Get Latest Price

Type2-PC Flanged Ball Valves
SizeDN 15 ~ DN 300
Pressure RatingANSI CL 150 / 300
StemBlowout Proof Stem
Temperature RangeWide Range Of Temperatures
Supply TypeManufacturer
Preferred Buyer Location All over the world

Send Enquiry

Company Information

Plant Automation

SD Road, Secunderabad, Telangana

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Type2-PC Flanged Ball Valves
Pressure RatingANSI CL 150 / 300
SizeDN 15 ~ DN 300
StemBlowout Proof Stem
Temperature RangeWide Range Of Temperatures

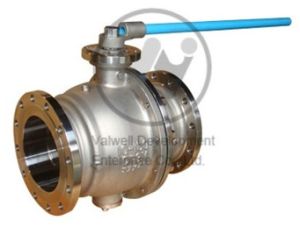

Metal Seated Ball Valves HP-64Q is 2-PC Flanged Ball Valves with Full Bore, Metal Seat and Trunnion Mounted. It has the Stainless steel, blowout proof stem. The valve is suitable for wide range of temperatures.. The Design of this valve is made with Fire Safe design, Low Torque and zero leakage. This valve is operated by Lever or Gear Box. Material of valve can be Carbon steel, Stainless steel and Special Alloy steel, etc. These valves are widely used in Refining, Power Generation, Oil / Gas and Pulp / Paper Industry, etc.
Specifications:
Pressure Rating: ANSI CL 150 / 300
Size: from DN 15 ~ DN 300
ISO 5211 Direct Mounting Pad
Seat: SS 316 + Solder Stellite#6 / HVOF
Ball: CF8M Solid Ball + Hard Chrome Plated / HVOF
Wall thickness complies with ASME B16.34
Safety/Quality Approvals: API 6D, CE, ISO, DNV approved factory
