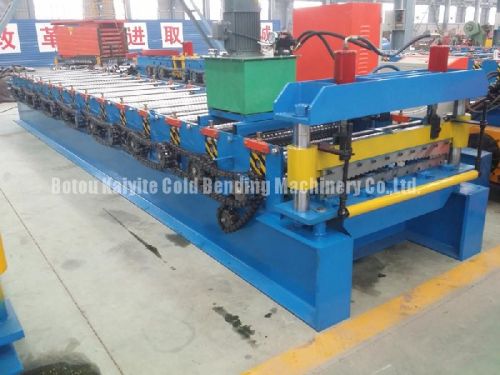

Metal Sheet Roof Corrugated Roll Forming Machine

Metal Sheet Roof Corrugated Roll Forming Machine When you want to buy the metal sheet roof corrugated roll forming machine , maybe you have many questions in mind . At this time we can help to analyze the roof tile in your market. Which one is popular and which one will be popular .We can also help you confirm all details of the roof tile roll forming machine together, including the drawing, thickness of material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.  Decoiling the sheet→Sheet guiding→Roll forming→Measure length→Cutting the panel→Panels to product stand Technical parameters: a . Material speciafication : colored steel sheet , galvanized steel sheet   b .Thickness of coil sheet : 0.3-0.8mm c . Forming speed : 8-15 meter min  d .Hydraulic station power : 5.5kw e . Main motor power : 5.5kw    f .Voltage : at buyers requiremen     g . Controlling system : PLC  The following is the detailed pictures of the machine .This design make our machine stable fast cutting and long service life . Hydraulic cutting system : Hydraulic Cutting with two Guide Pillars and two cylinders . Forming rollers Specification : 45# steel , CNC lathes , heat treated  Feathure : hard chrome plating , 0.05 mm Main frame specification: 400 H steel . Thickness : 16mm   feature: More stable, no shaking Guide device It is used to control the width and position of the steel sheet.
