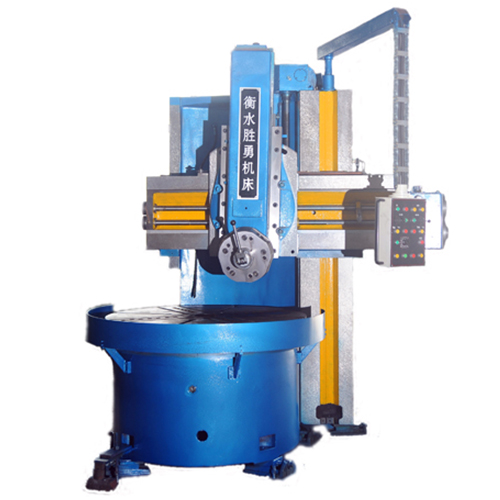

Metal Turning Manual Vertical Lathe Machine

Manual vertical turning lathe machine can be machining not large diameter workpiece, according to customer requirements, vertical lathe can be turning outer circle,end face, slotting and chamfering.Vertical lathe has vertical tool post and side tool post. Pentagon knife tool carrier is installed on vertical tool post,it can not only clamp tools,but also provided with clamping holes to drill. Vertical turning lathe machines can apply to hard alloy materials and ceramic cutting tool, can process cone surface, face, groove, boring and rotary surface coarse fine turning.
Technical specification of Good quality Manual vertical turning lathe machine C5126
1 Table diameter 2300mm
2 Maximum turning diameter 2600mm
3 Maximum Height of workpiece 1300mm
4 Maximum Weight of workpiece 10t
5 Speed range of table 2.5-80rmin
6 Working table Step of rotation speed 16
7 Range of feed rates 0.8-86 mmmin
8 Step 12
9 horizontal travel of vertical slide 1600 mm
Vertical travel of vertical slide 915 mm
10 Horizontal travel of side tool post 750 mm
Vertical travel of side tool post 900 mm
11 Crossrail travel 850 mm
12 Maximum size of tool bar section 35×45 mm
13 Power of main motor 37 kw
Rotating Speed 1470 rmin
14 Power of feed motor 1.31.7 kw
Rotating Speed 9401440 rmin
15 Machine weight(Approx) 19.5 t
