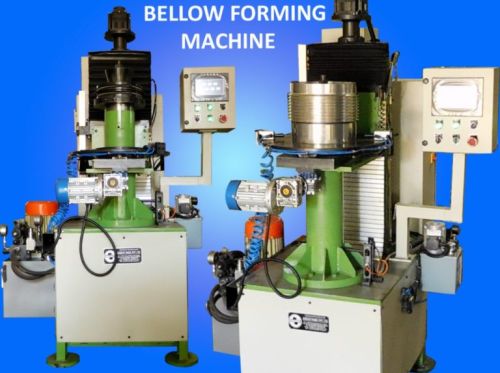

Contact SupplierMetallic Bellow Forming Machine was developed to obtain uniform and accurate bellow with mechanical cold forming with an completely automated process. The machine has an hydraulic cylinder, which will open and close the bellow die. The bellow die expands to form the bellow. The actual bellow blank, a stainless steel sheet metal seam welded in cylindrical shape, rests on a rotary indexing table which inturn is mounted on a vertical indexing slide. This indexing slide, is driven by a servo motor connected to a ballscrew. The sliding surfaces are made of LM guides and blocks for smooth and fast indexing. The servo motor, hydraulic expansion and indexing table rotation is seamlessly integrated with a PLC for complete auto-cycle function. A 7″ touchscreen HMI is provided, so that parameters such as bellow pitch, number of rotations and angle of rotation per expansion, speed of indexing, etc can be easily entered and set.
Â
FEATURES & SPECS:
SEQUENCE OF OPERATION:
