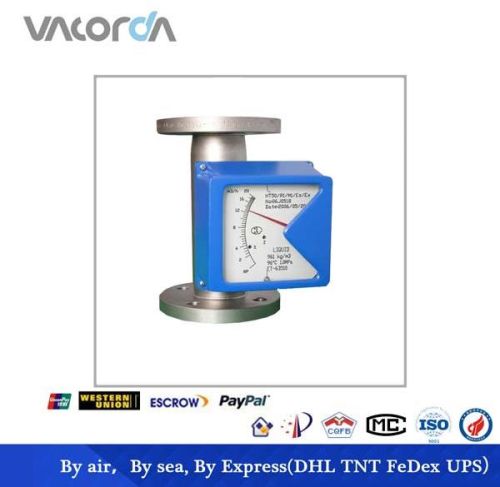

Metallic Rotor Flow Meter

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Metallic Rotor Flow Meter is a precision engineered device, which produces accurate results. Our company is a reputed Manufacturer and Supplier of Metallic Rotor Flow Meter in China. The offered Metallic Rotor Flow Meter has high accuracy and long service life. Customers can purchase the Metallic Rotor Flow Meter at market leading rates.

View More Details

Send Enquiry

Specifications

Measuring range	Water:1~200000L/H(20)
Measuring range	Air: 0.03~6000m³/h (200.1013MPa)
Measuring range proportion	Standard: 10:1; Special: 20:1
Accuracy class	Standard:1.5; Special: 1.0
Pressure class	Standard:DN15~DN50≤4.0MPa; DN80~DN200≤1.6MPa
Pressure class	High pressure:DN15~DN50≤32MPa;DN80~DN200≤16MPa
Pressure loss	Standard:DN15~DN50≤4.0MPa; DN80~DN200≤1.6MPa
Pressure loss	High pressure:DN15~DN50≤32MPa;DN80~DN200≤16MPa
Pressure loss	7kPa~70kPa
Medium temperature	Standard:-40^oC+100^o C; PTFE:-50^o C+100^o C
Medium temperature	High pressure:110^oC + 450^o C
Medium viscosity	DN15:È <5mPa.s(F15.1~F15.3), È <30mPa.s(F15.4~F15.8)
Medium viscosity	DN25:È <250mPa.s; DN50~DN200:È <300mPa.s
Environment temperature	Remote type : -40^o C+ 85^o C
Environment temperature	On-the spot needle indicator: -40^o C +100^o C
Connection type	Standard: DIN2501 standard flange; special: customize
Wiring connection	M20×1.5 female thread (1/2NPT female thread for Exd explosion-proof)
Power supply	Standard: 24VDC two-line 4~20mA(12VDC~32VDC)
	Warning type:24VDC four-line 4~20mA(18VDC~18VDC)
	AC type:85~265VAC 50HZ
	Battery type:3.6V 7.5AH lithium battery(3 years lifetime)
Loading resistance feature	Two-line: max loading resistance=50×(voltage-12)Ω=600Ω 24V
Loading resistance feature	Multi-line: max loading resistance 500Ω
Warning signal output	Reed pipe warning switch output, upper limit and lower limit flow warning(contact capacity 1A 30VDC)
Warning signal output	electric relay output(contact capacity 1A 30VDC, 0.25A 250VAC,0.5A 125VAC)
Pulse output	Min space 50ms (max loading 100mA 30VDC, internal resistance 100Ω)
LCD display	Instantaneous flow display scope:0~50000
LCD display	Total flow display scope: 0~99999999
Protection grade	IP65
Explosion-proof grade	Exia II CT5Ga Exd II BT6Gb
