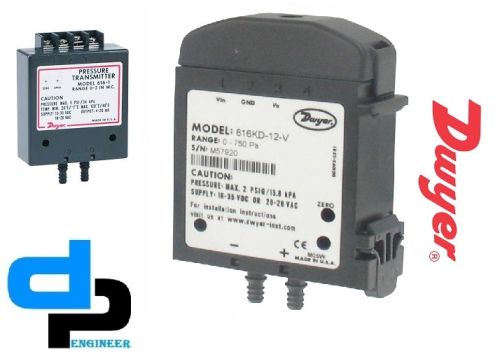

Series 616C -3 Differential Pressure Transmitter Range 0-10 Inch Wc

Dwyer Series 616C -3 Differential Pressure Transmitter Range 0-10 Inch wc

Product Details:

Model NumberSERIES 616C -3

BrandDWYER

Power10-35 VDC (2-wire).

Usage/ApplicationIndustrial Process Monitoring

Electrical ConnectionScrew-type terminal block.

Automation GradeManual

Product Weight1.8 oz (51 g).

Pressure Limits2 psig

Pressure Range0-200 inch WC

Series 616C Transmitters feature exceptional ±1% accuracy in several factory calibrated ranges. Choose the one just right for your application. Span and Zero controls included for fine tuning and minor re-calibration in the field.

Specifications:

Service: Air And Non-Combustible, Compatible Gases.

Wetted Materials: Call us at 9871014210

Accuracy: ±1.0% F.S.

Stability: ±1% F.S./yr.

Temperature Limits: 0 to 140°F (-17.8 to 60°C).

Compensated Temperature Limits: 20 to 120°F (-6.67 to 48.9°C).

Pressure Range: 0-10″ w.c.

Pressure Limits: 2 psig.

Thermal Effect: ±0.02% F.S./°F (±0.0012% F.S./°C).

Power Requirements: 10-35 VDC (2-wire).

Output Signal: 4 to 20 mA.

Zero Adjustments: Potentiometers for zero and span.

Loop Resistance: DC; 0-1250 ohms maximum.

Current Consumption: DC; 38 mA maximum.

Electrical Connections: Screw-type terminal block.

Process Connections: Barbed, dual size to fit 1/8″ and 3/16″ (3.12 mm and 4.76 mm) I.D. rubber or

vinyl tubing.

Weight: 1.8 oz (51 g).

Agency Approvals: CE on 616 only..
