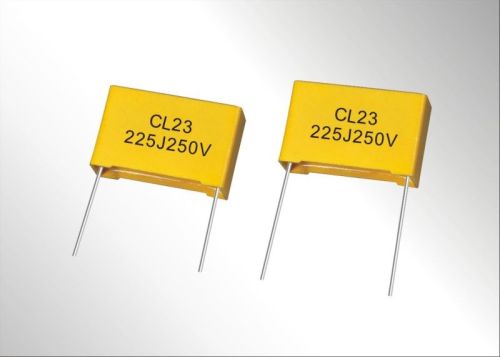

Metallized Polyester Film Capacitor MEB CL23, Brand Name : Kowary

₹ 0.91 / Piece

MOQ10 Piece(s)
MaterialPolyester Frilm
Brand NameKowary
Operating Temperature-40°C - +85°C
ApplicationIn Pulse, Logic, Timing And Oscillator Circuits Etc.
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 15 Years
Nature of Business Supplier
Year of Establishment 2005

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameKowary
MaterialPolyester Frilm
ApplicationIn Pulse, Logic, Timing And Oscillator Circuits Etc.
Country of Origin100VDC, 250VDC, 400VDC, 630VDC
Operating Temperature-40°C - +85°C
AdhesiveSelf Healing And Long Life
Model NumberCL21-B
PACKAGEBULK

Specifications
features
metallized polyester film, non-inductive wound construction.
Plastic case, epoxy resin sealing.
High reliability.
Applications
suitable for blocking, bypass, coupling, decoupling.
Widely used in pulse, logic, timing and oscillator circuits etc.
Specifications
reference standard: iec 60384-2
operating temperature: -40Ã¢Â°c - +85Ã¢Â°c
capacitance range: 0.01uf - 10.0uf
capacitance tolerance: Ã¢Â±5%(j), Ã¢Â±10%(k), Ã¢Â±20%(m)
rated voltage: 100vdc, 250vdc, 400vdc, 630vdc
dissipation factor: 1.0% max. At 1khz, 20Ã¢Â°c
dielectric strength: 160% of rated voltage for 5 sec.
Insulation resistance: urÃ¢ï¿½Â¤100v, 15,000mohm min. For cÃ¢ï¿½Â¤0.33uf
urÃ¢ï¿½Â¤100v, 5,000mohm*ufc min. For c>0.33uf
ur>100v, 30,000mohm min. For cÃ¢ï¿½Â¤0.33uf
ur>100v, 10,000mohm*ufc min. For c>0.33uf (20Ã¢Â°c 1min)
notes
customization for special specification and requirement is available.
