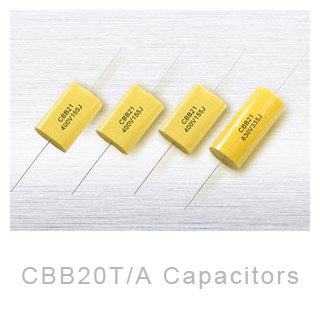

Metallized Polypropylene Film, Brand Name : KOWARY

Features metallized polypropylene film, non-inductive wound construction, axial.
Wrapped with polyester adhesive tape and epoxy resin filled.
Excellent self-healing property.
Applications widely used in temperature compensation circuits, timing, oscillator circuits, power factor correction and coupling capacitor in smps applications.
Specifications reference standard: iec 60384-16
operating temperature: -40â°c - +85â°c
capacitance range: 0.01uf - 10uf
capacitance tolerance: â±5%(j), â±10%(k), â±20%(m)
rated voltage: 250vdc, 400vdc, 630vdc
dissipation factor: 0.1% max. At 1khz, 20â°c
dielectric strength: 160% of rated voltage for 5 sec.
Insulation resistance: 50,000 mohm min. For c�0.33uf
15,000 mohm*ufc min. For c>0.33uf (20â°c, 1min)
notes customization for special specification and requirement is available.
Kindly contact with info at kowarytech.com for product datasheet. Thanks!
