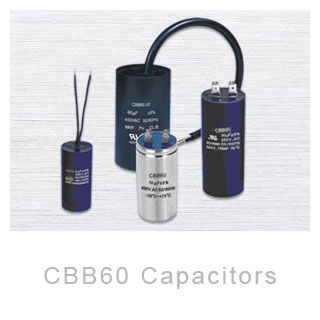

Metallized Polypropylene Film Capacitor (CBB60)

Features dry a.c capacitors.
Small cubage, low loss, low temperature rise, high insulation, good self-healing property.
Coating: aluminum case or plastic case.
Terminals: tinned copper lug or insulated flexible lead wires.
Applications widely used in ac motor start and run at 50hz60hz.
Use well in water pump, air compressor, washing machine, etc.
Specifications reference standard: iec 60252
operating temperature: -40°c - +70°c
capacitance range: 1uf - 80uf
capacitance tolerance: ±5%(j), others
rated voltage: 110 - 600vac
dissipation factor: ≤0.2% 100hz, 20°c
dielectric strength: between terminals: 200% of rated voltage for 10 sec. Or 150% of rated voltage for 60 sec.
Between terminals to case: 2300vac min. For 10 sec.
Insulation resistance: between terminals: 3,000 mohm*ufc min.
Between terminals to case: 1,000 mohm min. (20°c, 1min)
notes customization for special specification and requirement is available.
