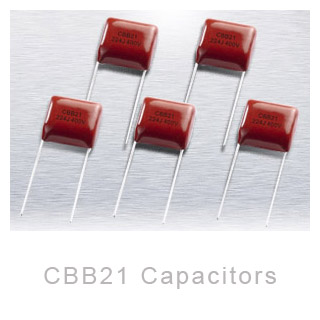

Metallized Polypropylene Film Capacitor (MPP CBB21)

Features metallized polypropylene film, non-inductive wound construction.
Low loss at high frequency.
Small inherent temperature rise.
Applications widely used in high frequency, dc, ac and pulse circuits.
Providing optimum performance with small size in s-correction circuits for color tv set.
Specifications reference standard: iec 60384-17
operating temperature: -40°c - +85°c
capacitance range: 0.01uf - 3.3uf
capacitance tolerance: ±5%(j), ±10%(k), ±20%(m)
rated voltage: 100vdc, 250vdc 400vdc 630vdc
dissipation factor: 0.1% max. At 1khz, 20°c
dielectric strength: 160% of rated voltage for 5 sec.
Insulation resistance: 50,000 mohm min. For c≤0.33uf
10,000 mohm*ufc min. For c>0.33uf (20°c, 1min)
notes
customization for special specification and requirement is available.
