Suitable for Engineering Colleges, Polytechnics for study of metals structures and grains etc.

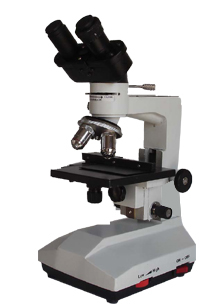

Model : SM-2
45° inclined comfortable viewing 50-75mm IPD adjustments,
One eyepiece tube provided with diopter adjustments ring is standard feature.
Eyepieces WF10x (1 Pair ) One ASTM Grain Size Eyepiece
Parfocal Achro-Objectives 4x, 10x, 20x, 40x/45x Retractable SL
Rack & Pinion coarse focus system
Fine focus by slow motion mechanism graduated 1div = 0.002mm
Stage fitted with mechanical stage for X-Y direction movement of specimen samples
Height adjustment mechanism is provided between objective and stage for big height sample.
A filter holder is provided for different contrast imaging
Epi-illumination system built-in 6v-20w halogen bulb light & intensity control regulator, Input 220-230v AC 50Hz.
Standard Accessories One spare bulb, 2 filter, 2 rubber eye guard, dust cover, wooden
