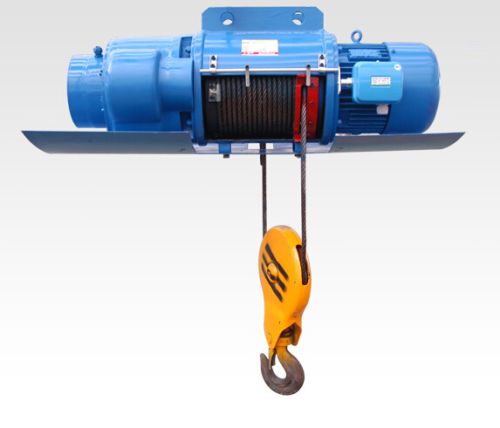

Metallurgy Electric Wire Hoist, Brand Name : Nucleon

Brief introduction
high performance nucleon light-duty metallurgy electric hoist equitment motor-driven wire rope hoist 3t is a perfect light-duty metallurgy hoisting equipment that can be used together with ldy type etallurgy single girder crane and can be installed under workshop fixed suspending rail to use individually. Design and manufacture of metallurgy electric hoist meet the requirements of aqsiq doc (2007) 375. Other situations that lift fusion non-metallic material or hot solid metal also can refer.
Using place
our metallurgy electric hoist mainly used for lifting molten metal. This series electric hoist has many protection functions such as double braking,double spacing,heat insulation plate and so on.
Components
motor, trolley, gear box, wire rope,rope drum, electric control system, rope guide, hook.
main features
1) simple structure in linear type ,easy in installation and maintation.
2) adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3)raising working efficiency.
4) a necessity for any type of crane .
5)warrantable quality and favourable price.
Features & advantages：
1.the electric hoist job level up to m6;
2.lifting mechanism configuration has a support brake and a safety brakes, when tapered motor brake failure or intermediate transmission links fails, installed in high speed reducer shaft of the dc electromagnetic brake or installed in the drum brake began to action, ratchet wheel brake, avoid heavy weight to stall dangerous;
3.with a double limit on the limit function;
4.weight limit protection;
5.high temperature heat insulation protection function;
6.lifting motor and running the insulation of the motor by h class and grade in lifting motor overheating protection device placed in the windings;
7.the special occasion of wire rope configuration metallurgy high strength and high temperature wire rope
