MeteorCNC:4TR Series : 4-axis DSP Controller For Lathe With Router Machine

 MeteorCNC:4TR Series:

MeteorCNC 4TR series is 4 axes DSP Lathe with Router controller manufacturer with handheld running upto 500khz differential pulse & direction output for smooth operation with 24 Inputs, 12 Outputs, 1 Analog output and encoder facility available.

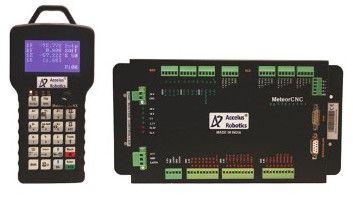

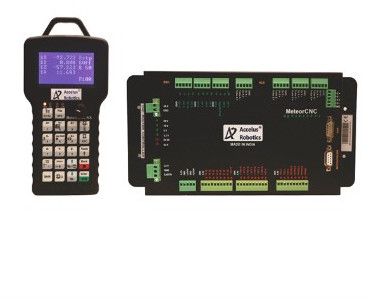

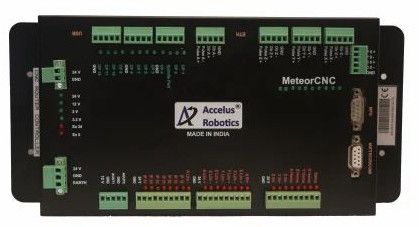

MeteorCNC 4TR series is a 4 axes DSP Lathe with Router controller operated with handheld provides up to 500khz jitter free differential pulse & direction output for smooth motion at the motor end. It comes with 4 axis control card and handheld and inbuilt MPG available with few extra inputs and outputs with additional facility of external high speed differential encoder input which can be used for either MPG remote for jogging of axis OR spindle encoder feedback for tapping cycle.
A 4-axes CNC machine functions much like its 3-axes counterpart. With addition of one extra rotational motion from the controller makes it very special for making critical works. The workpiece is in a stationary position, and the cutting tool works on it to remove material and mold the desired part. However, as the name
indicates, 4-axis machining adds an axis of rotation to the standard X, Y, and Z movement. This extra movement is rotation along the X-axis, which forms a fourth plane the A-axis OR rotational along Y-axis. The rotation may be accomplished by moving the tool or the workpiece which is being machined, and the axis of rotation may be parallel to or perpendicular to the tool surface. The orientation of the axis of rotation determines how easy it is to machine certain features and undercuts on a given machine.
4 individual simultaneously running axis machine is majorly used in wood working / router machine industries for making statues, stone cutting/ engraving machine for pillar making etc. making the job faster and easier for the users.
