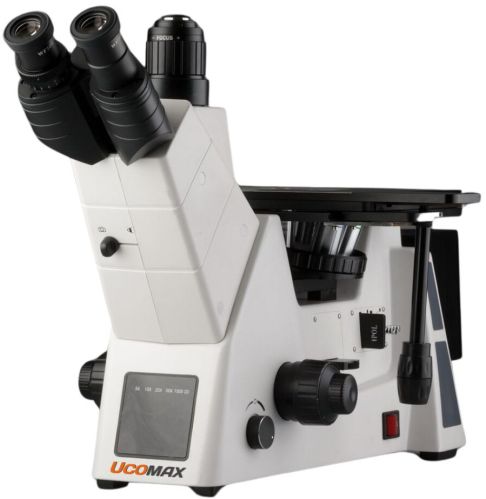

Metscope Nexgen Microscopes

Metscope Nexgen is a high-level inverted metallurgical microscope designed for demanding scientific research, advanced physical and chemical inspection, and precise material analysis. It combines Epi-Koehler illumination, infinity-corrected long working distance objectives for bright and dark field work, a robust polarizing device, and ergonomic controls to deliver sharp, clear imaging.

Key Highlights:

1. Siedentopf Trinocular Head: 45° inclined with diopter adjustment and phototube for micro-photography
2. Infinity Plan Long Working Distance Objectives: Bright & dark field imaging up to 100X
3. Epi-Koehler Illumination: 24V/100W halogen lamp with filter wheel (blue, green, yellow) and adjustable brightness
4. Co-axial Focusing System: Large knobs, pre-focusing lever, tension adjustment ring, fine scale 0.002 mm
5. Polarizing Device: Analyzer rotatable 360°, polarizer and analyzer slide in/out of optical path
6. Wide Field Eyepieces: Multiple options with crosshair and reticule for precise measurement
7. Large Mechanical Stage: Smooth movement with low-positioned co-axial controls
