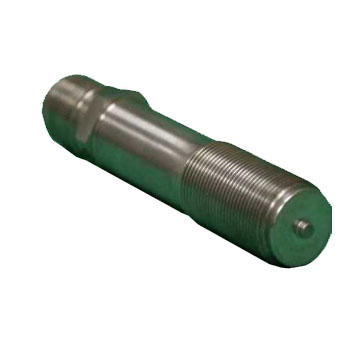

MEVS-017 Magnetic Pick-Up Speed Sensor

Our strong association with the renowned vendors in the market helps us in fetching the outstanding array of raw materials and that too after complete inspection. We keep our standards high to maintain quality throughout. We have abundant dealers, distributors connected with us to ensure our goods are obtainable for purchasers, and deliveries are made on time.

Features :

• Sensor with adjustable stainless steel or Brass housing.
• Small compact size, low price.
• Simple mounting, 3/8” UNF -24 threads and 2 jam nuts to secure the sensor.
• Large operating air gaps.
• Industrial-grade sensor, bad environment compatible, such as dirt and oil environment.

Specification :

• Inductance 190mH
• DC resistance 1000 Ohm
• Output Voltage -  13.4V (P-P)
• Operating temperature -  -40^oc125^oc
• Operating Air Grip -  0.5 2.5mm

Gear Information :

• The MEVS-017 Sensor can be used in conjunction with gears of various Shapes and sizes example as follows.  Diameter is 120mm, thick ness is 6mm, tooth width is 3mm, valley width is 3mm, and valley depth is 3mm.
• The material is low carbon steel.

Cable information : A shielded Cable is recommended, for particularly noisy environment or the length of cable is over 1500mm.
Appliance : The MEVS sensor directly sense rotating ferrous gear type gears such as web speed gears, power transmission gears, conveyor speed and other similar gear-based shaft encoder.
