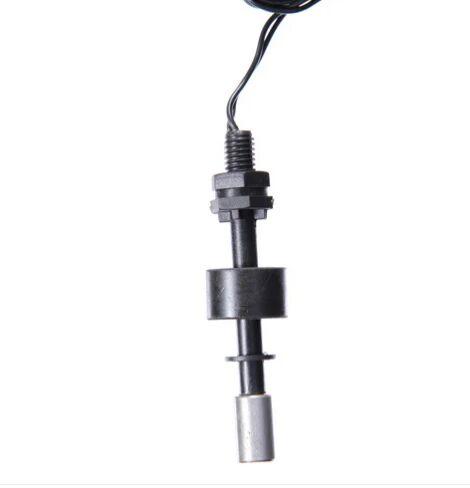

Mfs Vt 01 Wt Plastic Vertical Float Switch Hanging Weight

₹ 180 - ₹ 190 / piece

MOQ10 piece
MaterialNylon
Temperature Range-20+60C
Mounting TypeVertical Mount
Brand NameHAMILTON
Supply TypeManufacturer, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location Anywhere in India

Company Information

4.6/5

Member Since 10 Years
Nature of Business Distributor
GST No. 29AUMPA5873D1ZH

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Country of OriginIndia
Brand NameHAMILTON
DesignStandard
AC & DC Voltage200 vdc max
Switch OperationNO/NC/CO
Cable Length500MM
Measuring Range20MM
Float Diameter24.70
Temperature Range-20+60C
Operating Temperature-20+80C
Output Sink SourceSOURCE
Working Pressure1.0 Kgcm2
UsageIDUSTRIAL & DOMESTIC
MaterialNylon
Mounting TypeVertical Mount
Current Rating0.5A
Mounting OptionsVERTICAL MOUNT
Media TypeLiquid
Pole And Throw SpecificationSPST
Meter TechnologyMAGNETIC
Switch Positions1
Total Carbohydrate6 MONTH
Number Of FlowerMAGNETIC FLOAT

Product Details:

Switching voltage	200 vdc max
Switching current	0. 5a max
Carry current	1a max. 2a max
Switching capacity	10w/va max
Contact resistance	150m ohms
Reversible switch action	Yes
Operating pressure	1. 0 Kg/cm sq

Plastic Vertical Float Switch With Hanging Weight (Standard Housing) offered is made available in either normally open, normally closed, change over contact form options with a choice of lock nut mounting and suitability in applications involving water, gasoline, oils.

Features:

Lock Nut Mounting
Suitable for water, gasoline, oils etc.
Available either Normally Open, Normally Close, Change Over Contact Form

Application:

Most suitable for Water controller application.
House hold types of equipment such as heaters, humidifiers, overhead water tower.
Water purifiers, Coffee Machines medical equipment, food industry.
