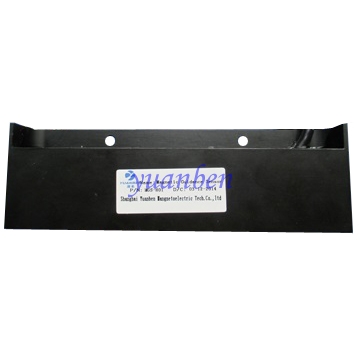

MGS-1411-H01 Magnetic Guidance Sensor

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

We make available the products using the exceptional quality raw material that is experts certified. This makes our product range completely reliable and genuine. We have successfully emerged as a distinguished supplier of MGS-1411-H01 Magnetic Guidance Sensor that is highly demanded amidst the customers.

Feature :

Magnetic Tape Guidance AGV's route can be constructed in various locations, since the magnetic tape route can be constructed where the floor can not be carved. Modification of a magnetic tape route can be done easily and the route is durable against dust, water and light.
MGS-H01 Magnetic Guide sensor detects the slight magnetic flux from a magnetic guide tape at operation distance 30mm (30mm to 40mm) and generates multiple switching signals or deviation voltage. IP-67 housing is optionally available

Specifications

Operation Distance	30 to 40mm (standard)
Sensing objects	Magnetic Guide Tape (Wide 50mm, thick 1.5mm, )
Supply voltage	+24 VDC ±5%, ripple (p-p) 1% max.
Digital type Output	NPN Transistor Open Collector Normally open Applicable voltage 30V max. Sink current 100mA max.
Operation Temperature	-10^oC to +50^oC (Non-freezing)
Operation Humidity	35 to 95%RH (Non-condensing)
