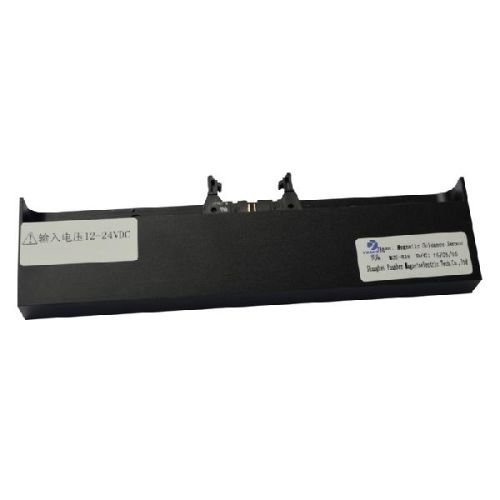

MGS-2473-H16 Magnetic Guidance Sensor

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The MGS-2473-H16 Magnetic Guidance Sensor, provided by us, is reckoned for its quality. MGS-2473-H16 AGV Magnetic Guidance Sensor Over the years, our company has a cemented its position in SHANGHAI(China) and is determined to become a trusted provider in other markets as well. We understand that security is an issue while making online payments, but with us you can trust while making transactions, as we have leading technologies available.

View More Details

Send Enquiry

Product Details

Items	Contents
Power supply	DC+5 to +30V; ripple 2% max.
Power consumption	35mA max. (at DC+24V)
	70mA max. (at DC+12V)
	75mA max. (at DC+5V)
Operating Temperature	from -10 to +60^oC
Operation Humidity	from 35% to 95%RH (no condensation)
Storage Temperature	from -30 to +80^oC
Storage Humidity	from 35% to 95%RH (no condensation)
Target	MGT-50 -25 series magneticguide tape
Operation Air gap	from 5 to 30mm (with MGT-50-25)
Sensitivity	N-pole;6mT and over/ S-pole; 6mT and over
Output	-
Element	16 bits
Pitch	10mm at even intervals
Logic	Normally open
Circuit	NPN open collector (DC30V, 50mA max.)
Residual voltage	2V max. (at 50mA)
Response	1ms
