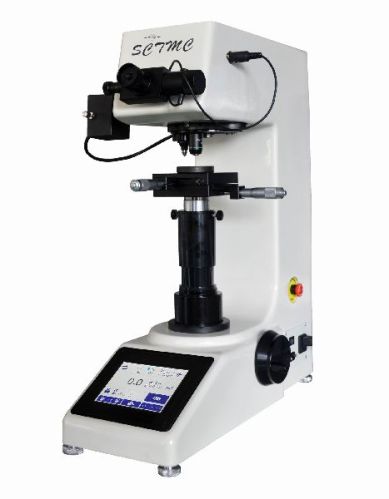

    MHV-10Z Digital Vickers Hardness Tester, Power Supply : AC220V, 50Hz

    MHV-10Z Digital Vickers Hardness Tester, Power Supply : AC220V, 50Hz

    Get Latest Price
    • Power SupplyAC220V, 50Hz
    • Dimension530×280×630mm
    • Light SourceHalogen Lamp
    • Resolution0.25μm x 0.0625μm
    • Supply TypeManufacturer, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Hung Ta Instrument (M) Sdn Bhdverified-icon
    location Seremban
    View Number
    • calendar Member Since 13 Years
    • building Nature of Business Supplier
    • Year of Establishment 2000

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    • Power SupplyAC220V, 50Hz
    • Throat130mm
    • Dimension530×280×630mm
    • Net Weight35kg
    • Light SourceHalogen Lamp
    • X-Y Test TableSize: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
    • Execute StandardISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
    • Max. Height of Specimen170mm
    • Resolution0.25μm x 0.0625μm
    • Objective10× , 40×
    • Eyepiece10×
    • Data OutputBuilt-in Printer, RS232 Interface
    • Test Force in kgf0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf
    • Gross Weight47kg
    • Test Force in N2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N
    • Shifting between Objective and IndenterAutomatic Shifting
    • Packing Dimension620×450×740mm
    • Loading MethodAutomatic (Loading/Dwell/Unloading)
    • Dwell Time0~60s
    • ModelMHV-10Z
    • Total Magnification100× 400×
    • Test Range1HV~2967HV

    Packing List

    NameQty
    Instrument Main Body1 set
    Diamond Vickers Indenter1 pc
    Cross Test Table1 pc
    Horizontal Regulating Screw4 pcs
    Fuse1A2 pcs
    Inner Hexagon Spanner 2.5mm1 pc
    Hardness Block 700~800 HV11 pc
    Anti-dust Cover1 pc
    10×Digital Measuring Eyepiece1 pc
    10×ï¼ 40×Objectiveeach 1 pc
    Power Cable1 pc
    Level1 pc
    Halogen Lamp12V 15~20W1 pc
    Screw Driver1 pc
    Hardness Block 700~800 HV101 pc
    Usage Instruction Manual1 copy
