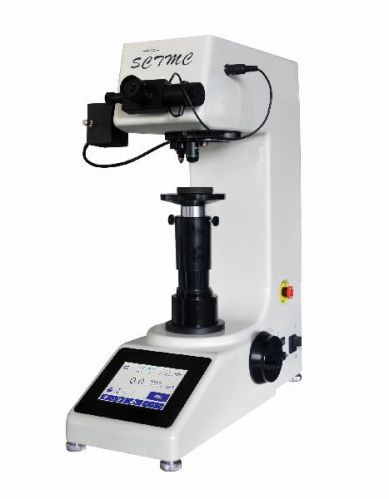

    MHV-50Z Digital Vickers Hardness Tester, Power Supply : AC220V, 50Hz

    MHV-50Z Digital Vickers Hardness Tester, Power Supply : AC220V, 50Hz

    Get Latest Price
    • Power SupplyAC220V, 50Hz
    • Loading MethodAutomatic (Loading/Dwell/Unloading)
    • Light SourceHalogen Lamp
    • Resolution0.25μm, 0.125μm
    • Supply TypeManufacturer, Supplier
    • Preferred Buyer Location All over the world
    View More Details
    Send Enquiry

    Company Information

    Hung Ta Instrument (M) Sdn Bhdverified-icon
    location Seremban
    View Number
    • calendar Member Since 13 Years
    • building Nature of Business Supplier
    • Year of Establishment 2000

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    • Power SupplyAC220V, 50Hz
    • Light SourceHalogen Lamp
    • Objective10× 20×
    • Test Force in N9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N
    • Total Magnification100× 200×
    • Max. Height of Specimen170mm
    • Test Range1HV~2967HV
    • Resolution0.25μm, 0.125μm
    • ModelMHV-50Z
    • Eyepiece10×
    • Test Force in kgf1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf
    • Gross Weight47kg
    • Data OutputBuilt-in Printer, RS232 Interface
    • Net Weight35kg
    • Shifting between Objective and IndenterAutomatic Shifting
    • Dwell Time0~60s
    • Packing Dimension620×450×740mm
    • Loading MethodAutomatic (Loading/Dwell/Unloading)
    • Throat130mm
    • Execute StandardISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
    • Dimension530×280×630mm

    Packing List

    NameQty
    Instrument Main Body1 set
    Diamond Vickers Indenter1 pc
    Big Plane Test Table1 pc
    Power Cable1 pc
    Horizontal Regulating Screw4 pcs
    Fuse1A2 pcs
    Inner Hexagon Spanner 2.5mm1 pc
    Hardness Block 700~800 HV301 pc
    Usage Instruction Manual1 copy
    10×Digital Measuring Eyepiece1 pc
    10× 20×Objectiveeach 1 pc
    V-shaped Test Table1 pc
    Level1 pc
    Halogen Lamp12V15~20W1 pc
    Screw Driver1 pc
    Hardness Block 400~500 HV51 pc
    Anti-dust Cover1 pc
