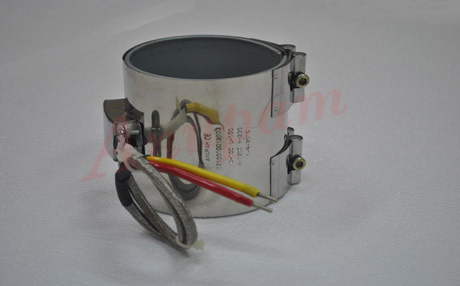

Mica Band Heaters

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Mica Band Heaters are constructed by winding a nickel-chrome resistance ribbon around mica insulation and encapsulated in a stainless steel sheath. It is then formed to the desired diameter for....

View More Details

Send Enquiry

Company Information

Anupam Heaters & Controls Pvt Ltd

Wagle Estate, Thane, Maharashtra

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Mica Band Heaters are constructed by winding a nickel-chrome resistance ribbon around mica insulation and encapsulated in a stainless steel sheath. It is then formed to the desired diameter for installation over a dies, barrels and nozzles. They are available in an extensive variety of sizes and shapes with options for holes, notches and cut-outs. A number of threaded terminals, wire lead options and terminal boxes offer great flexibility for field wiring.

APPLICATION

Injection moulding
Blow moulding
Extruders
Heating dies
Heating cylinders – drums
Compounding
Rubber machinery
Laboratory Equipment
SPECIFICATIONS
- Specific watt density : 3.5 W/cm2
- Working temperature upto 250° C
- Element: Nichrome strip/wire.
- Diameter range 25mm to 1000mm.
- Length range 25mm to 500mm
- High quality Mica having excellent Dielectric strength
Screw type/plug type Terminal connection available.
