Contact SupplierWe are offering mica tape.

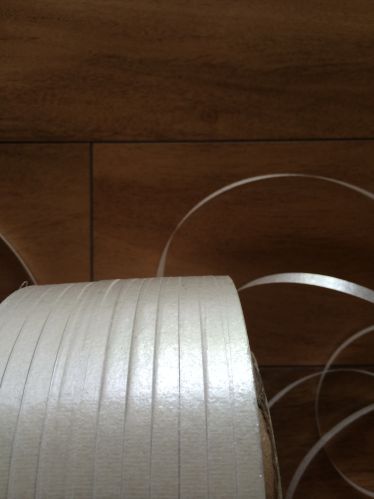

Item name electrical insulation mica tape
feature room temperature the material is flexible, when it surround the coil and is formed, it will have good electrical and mechanical properties.
Application suitable for high pressure motor coil insulation and turn insulation, fireproof cable can be used for wraping.
Technical details
no property unit standard
1 appearance adhesive evenly distributed, no impurities, no spinning, off paper, adhesion, delamination and die loosening
2 nominal thickness mm 0.14±0.02
0.17±0.03
3 bandwidth mm 15;20
25;30;35
4 mica content % ≥37
5 volatile content % ≤2
6 adhesives content % 20-40
7 breakdown strength (normal) mvm ≥ 16 ≥ 0.6
8 tensile strength n10mm ≥ 80
9 softness mm consulting
packaging and storage
each package is not more than 100kg with paper and plastic film cover plate into a inner carton, steel strapped or wooden carton outside
each package should be marked with item number, specification and type
stored in ventilated,dry and clean warehouse.
