MICRO Compound Table

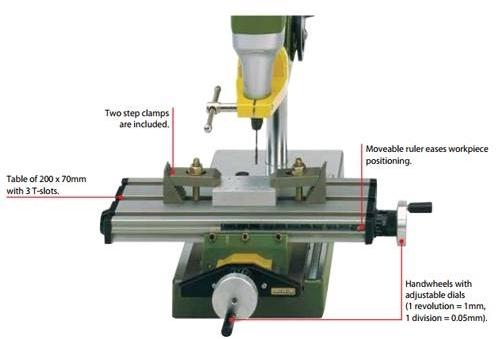

  MICRO compound table KT 70 Made of solid aluminium with surface treatment and fitted with adjustable dovetail gibsand three T-slots of the MICROMOT standard (12 x 6 x 5mm). Adjustable ruler eases workpiece positioning. Both handwheels have zero-resettable dials with graduations indicating 1 revolution = 1mm and 1 division = 0.05mm. The clamps and securing bolts for the MB 200, MB 140/S and TBM are included.Other technical data:Table size 200 x 70mm. X travel 134mm and Y travel 46mm, maximum height 43mm.
