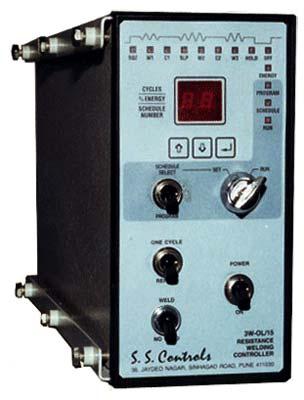

Micro Controller Based Spot Welding Controllers

₹ 6,000 - ₹ 1 Lakh / Piece

MOQ1 Piece(s)
ConditionGood
Country of OriginPune,Maharasthra
Product NameMicro Controller Based Spot Welding Controllers
TriggerExternal Normally Open contacts of Footswitch.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

4.5/5

Member Since 22 Years
Nature of Business Retailer
GST No. 27ABNPV6476F1ZX

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ConditionGood
Country of OriginPune,Maharasthra
Product NameMicro Controller Based Spot Welding Controllers
OutputGate- Cathode Drive signal to drive a pair of back to Back thyristors of any capacity.
TriggerExternal Normally Open contacts of Footswitch.
Brand NameS. S. Controls
Input Supply230V / 415V AC, 50Hz/60Hz

Features

Compact User-Friendly micro controller based circuitry.

3W-OL/15 : Three consecutive programmable weld timings - preheat (W1), weld (W2), anneal (W3) with intermediate cool timings in one weld schedule to achieve high quality splash free welding.

WCU/15 : Programmable WELD Time and Cool Time in a schedule.

Non-Volatile Memory (EEPROM) to store up to 15 weld schedules.

Easy to program with UP/DOWN and ENTER keys. Values programmed are indicated by a two-digit LED display. Individual operations within a weld schedule indicated by LEDs.

Key lock switch provided for SET and RUN mode.

Timings settable in terms of HALF / FULL cycles of mains supply frequency to achieve better resolution. Half cycle =10msec / cycle for 50Hz supply. OR Full cycle = 20msec / cycle for 50Hz supply.

Precise time and energy control ensures consistent weld quality.

ONE CYCLE and REPEAT CYCLE mode selectable by toggle switch. WELD / NO WELD switch provided on the front panel.

Two weld schedules Externally Selectable by Two Foot Switches. This features is suitable for spot welding Guns and multispot welding machines.

Dual Gun operation option available.

Specifications

Input Supply : 230V / 415V AC, 50Hz/60Hz

Output : Gate- Cathode Drive signal to drive a pair of back to Back thyristors of any capacity.

Built in back to back thyristors for up to 95A primary current.

Normally Open Relay contacts for Solenoid valves.

2 Footswitch, 2 Valve operation suitable for Spot Welding Guns.

Compensation : Supply voltage fluctuation compensation. (Output Voltage remains within Â±3 % as against Â± 15% variation in mains voltage.)

Trigger : External Normally Open contacts of Footswitch. There are two options available:

Single / Double Initiation Footswitch

Two different schedules selectable by independent footswitches.

Option available for drive signal for two pairs of thyristors and two solenoid valves.

Note: 'Forge Delay' and 'Multi-Spot' options available on request.

Adjustment Of Various Parameters Possible As Per Table :

Squeeze Time	0-99 half cycles	Weld Energy (W2)	0-99% programmable
Preheat Time (W1)	0-99 half cycles	Cool (2) Time	0-99 half cycles
Energy Level (W1)	0-99% programmable	Anneal Time (W3)	0-99 half cycles
Cool (1) Time	0-99 half cycles	Energy Level (W3)	0-99% programmable
Slope of W2	0-9 half cycles	Hold Time	0-99 half cycles
Weld Time (W2)	0-99 half cycles	Off Time (in repeat mode)	0-99 half cycles
