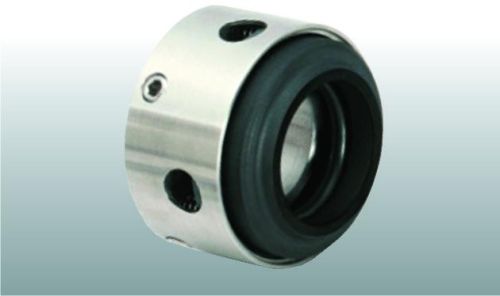

Mechanical Seal - Multiple Spring Reverse Balance Seals

“Mechanical Seal - Multiple spring Reversed Balance Seals" are externally mounted internally balanced multiple spring seals. the unique feature of this type of seals is that, it eliminated the shaft step or sleeves for balancing. these seals are externally mounted and hence the metal parts including the spring do not come in contact with the circulating media and therefore can be used for corrosive or abrasive media sealing. the compact design eliminates the requirement of extra radial and axial space for its installation.
 Application
Use in corrosive chemicals, hydrocarbons, general & light Chemicals.
  Operating Limits
Pressure : 10 bars (Max) Temperature : (-)50c to (+)180c Speed : 2900 rpm (Max) Sizes : 10 mm to 100 mm
  Material
Seal Face : Carbon, Silicon, Ceramic, TC Secondary Seals : Viton / PTFE / GFT Metal Parts : SS 316, Alloy 20, 904L.
