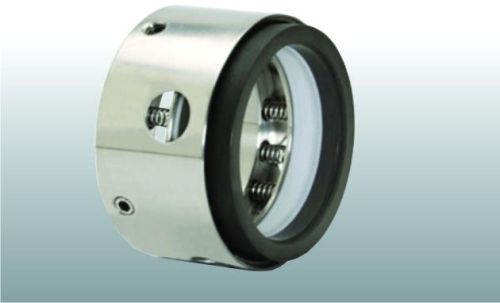

Mechanical Seals - Multiple Spring Unbalance Seals

“Mechanical Seal - Multiple Spring Unbalance" seal are general purpose multi spring unbalance seals. These seal can be easily assemble or dismantled through circlip provided and can be change to balance version. These seal can be provided with single, double or tandem arrangement with external seal support system & devices
 Application
petroleum refinery, Petro chemicals, light hydrocarbons and general industrial fluids.
  Operating Limits
Pressure : 10 bars (Max) Temperature : (-)50c to (+)280c Speed : 25 m/s Sizes : 10 mm to 150 mm
  Material
Seal Face : Carbon, Silicon, Ceramic, TC Secondary Seals : Viton/PTFE/GFT Metal Parts : SS 316,SS 304, Alloy 20.
