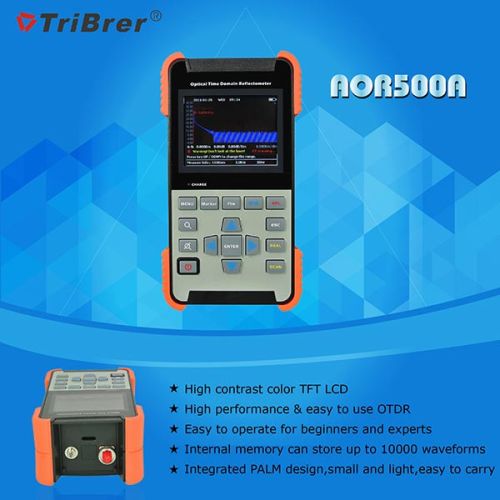

Micro Optical Time Domain Reflectometer, Brand Name : Tribrer

Get Latest Price

MOQ1 Set(s)
Brand NameTribrer
Wavelength1550/1310nm,1550/1310nm,1550/1310nm,1550/1310nm,1550/1310/1625nm
WeightAbout 750g
Distance uncertainty±(0.8m ± 0.001% * testing distance ± resolution)
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Zhejiang Tribrer Communication Limited

Shanghai

View Number

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameTribrer
Wavelength1550/1310nm,1550/1310nm,1550/1310nm,1550/1310nm,1550/1310/1625nm
Size(H*W*D)197mm * 107mm * 67mm
Operating Temperature-10°C -- +50°C , < 90%RH
Max.Distance**80km,100km,120km,140km,120km
Storage Temperature-20°C -- +60°C , < 90%RH
BatteryBuilt-in rechargeable battery
Loss Resolution0.001dB
Distance uncertainty±(0.8m ± 0.001% * testing distance ± resolution)
Attenuation Dead Zone8.0m
VFL1mW
ModelAOR500-S,AOR500-A,AOR500-B,AOR500-C,AOR500-B-S3S5S6
Pulse Width10ns, 25ns, 50ns, 100ns, 250ns, 500ns, 1us, 2.5us,5us,10us
WeightAbout 750g
Data Storage> 10000 traces (standard 1GB SD card)
Event Dead Zone **1.5m
Min.Distance Resolution1m
Working Time>10 hrs (Bellcore TR-NWT-001138)
Display3.5 inch TFT color LCD
InterfaceUSB
Dynamic Range*24dB / 22dB,28dB / 26dB,32dB / 30dB,36dB / 34dB,32dB / 30dB / 30dB

We offer Micro Optical Time Domain Reflectometer.
This advanced diagnostic tool for optical fibres allows the Fibre Engineer to take a snapshot of a fibre link.The OTDR sends short pulses of light down one end of a fibre at a specified repetition rate.Light reflected back from fibre discontinuities and light continuously back scattered from the fibre itself travels back to the OTDR, where the instrument records the optical power and arrival time.The arrival time of the pulse from a given point in the fibre is related to its distance from the OTDR.With this information, the OTDR graphically displays returned power versus distance.OTDRs are well-equipped for troubleshooting problems because they allow you to visually locate reflective events like connections and fibre breaks and non-reflective events like splices and tight bends by studying the graphical trace.
The power difference between two points on the trace is an estimate of optical loss.
Features:
Automatic one-button testing
Easy to operate for beginners and experts
Integrated PALM design,small and light,easy to carry
Short dead zone(8m)
High speed signal processing, short test time and fast analysis
Internal memory can store up to 10000 waveforms
High contrast color TFT LCD
USB port connect to PC
Input laser signal auto detection and self-protection function
Built-in VFL
User-friendly OTDR simulation software shows details of events
