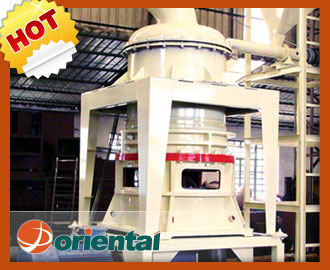

Micro Powder Mill

We are offering micro powder mill. Powder mill(ultrafine mill) is for super-fine grinding materials with hardness less than 6 in moh’s scale and humidity less than 6 percent such as kaolin, limestone, calcite, marble,talcum, barite, gypsum, dolomite, bentonite mud,mica, pyrophyllite, sepiolite, diatomite, graphite, alunite, fluorite, potassium feldspar, phosphorite, pigment and so on. The granularity of the end products is 325-2500 meshes (0.044-0.0055mm).
features of oriental micro powder mill
● high-efficiency and low consumption
with the same end-products fineness and motor power, its output can be doubled comparing with jet mill, mix mill, and ball mill.
● longer service life for wearing parts.
The grinding roll and ring are made of special alloy. Generally, their service life is more than one year, but in certain condition which could up to over 3 years, like when it processes calcium carbonate and calcite.
● more secure and reliable.
There is no rolling bearings and screws in the grinding cavity, so no problems caused by the wear of bearings or screws
● good performance on cleansing and environment protection
this machine greatly reduces the industrial dust pollution and noise by applying pulse dust collector and muffler, which reaches the national standard.
technical data of oriental micro powder mill
mode roller numbers(pcs) ring diameter (mm) ring numbers (pcs) max. Feeding size (mm) output size(mm) capacity (kg/h) motor power (kw) overall dimension (mm)
zym80 21 ø800 3 20 0.044-0.005 600-4500 55 13000×3000×5800
zym90 24 ø900 3 20 0.044-0.005 700-5500 37×2 14700×4800×7200
zym100 27 ø1000 3 20 0.044-0.005 900-6500 110 18000×4000×8600
zym100a 36 ø1000 4 20 0.044-0.005 1000-7500 110 18000×4600×8600.
