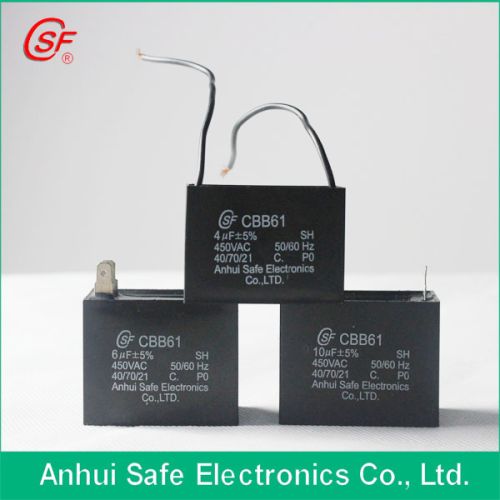

Micro Sh Capacitor

We are offering micro sh capacitor.
　　cbb61 capacitor description
　　capacitor takes heavy edge metallized al zn film as electrodes and dielectric. It is impregnatedwith flame-retardant epoxy resin and canned in cubic abs or pbt plastic case with characteristics of small size, reliable performance and long endurance.
　　cbb61 capacitor data:
　　product type polypropylene film capacitor
　　capacitance range 1uf~16uf
　　capacitor tolerance ±5%
　　climate type 407021 or 408521
　　rated voltage 200vac,250vac,370vac,400vac,
　　440vac,450vac,500vac,550vac,600vac
　　630vac,660vac
　　rated frequency 50hz60hz
　　operating temperature -40° c~+70° c -40° c~+85° c
　　class of safety protection p0p2
　　testing voltage
　　t-t: 2.0un60s
　　insulation resistance
　　 > =3000s
　　tangent of loss angle of a capacitor
　　 tanσ ≤ 0.0020 (100hz)
　　life expectancy
　　 classb, classc
