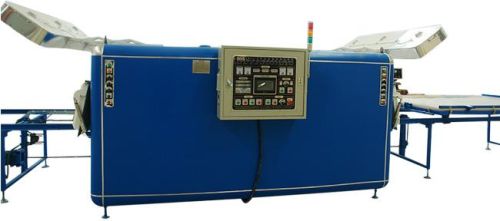

Contact Supplier3d microcrystal glass ceramic tile machine
machine parameters
voltage: 380v
power: 24.4kw
max working size: 1900mm×2500mm
processing thickness: 2-30mm
machine size: 3300mm×2500mm×2000mm
weight: 2250kg
machine characteristics
1. The furnace body uses the steel structure, the furnace inside uses the high-grade heat preservation material combination to become the double protection.
2. The control system is an intelligent temperature controller, can be programmed to complete the whole process automatically and manually.
3. Use direct-connected vacuum pump, tear-resistant silicone plate that is durable in use, good air tightness, and can automatically keep the vacuum after power down.
4. The ceramic tile machine use finned heating pipe,cooling uniformity, long life, using brand circulation fan to circulate air heating , heating speed , temperature equalizing, high output; the entire heat cycles in the box,there are air vents and suction vents in the equipment, so that each vacuum bag on the upper and lower surface heat evenly, there is no dead heat, high yield.
