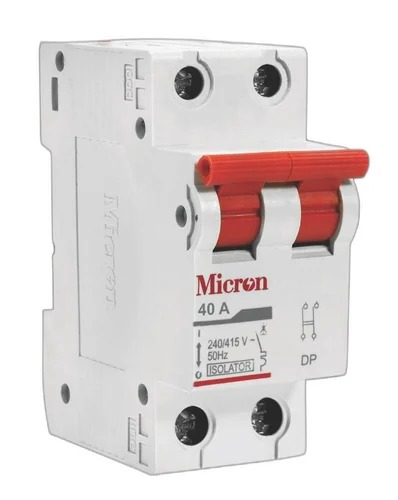

Micron isolator helps separate any electrical component from its system while the system is offline or online. A mechanical switch isolates a particular fraction of the circuit when its opening is required in a no-load condition. The Isolator should not be opened when the current is flowing through the line. The isolators are placed on both sides of the circuit. Thus, circuit breaker repair can be done with ease and no risk.

Technical Information

• Standard Conformity : IS/IEC 60947-3
• Rated Current (In) : 40, 63, 100 AMP
• Rated Voltage (Un) : 240V AC
• Rated Frequency : 50 Hz
• Rated Insulation Voltage (Ui) : 660 V
• Rated Impulse Voltage (Uimp) : 4 kV
• Dielectric Strength : 2000 V for 1 Minute
• Energy Limiting Class : Class 3
• Ambient Temperature(˚C ) : -5˚ to 55˚
• Degree of Protection : IP20
• Mounting : Snap on DIN rail at (35mm x 7.5mm)
• Connecting Terminals : 25mm²/35mm²

Features

• Switch disconnector with independent manual operation.
• CE marking fulfils the requirement of Global Standard.
• Environment friendly, meets the ROHS compliance as defined by the European Standard. Shock Proof: Finger and Hand touch safe.
• All moulded parts made from fire resistance engineering plastic ensures protection against Heating and Strong impact.
• Watt Loss value are much lower than the specific values of IS/IEC Consumes less power, thus cost effective and energy saving.
• Bi-connect terminals at both sides giving a choice of using either a busbar or a cable to make the connection.
• Positive Isolation
• Suitable for Residential & Commercial applications.
