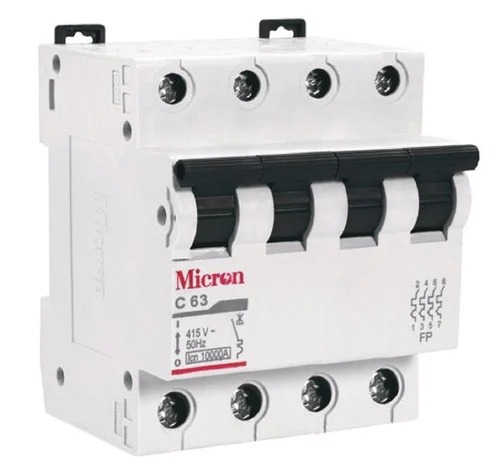

Micron Four Pole MCB, Rated Voltage : 415V AC

Micron Miniature Circuit Breaker (MCB) protects the low voltage electrical appliances and circuits which can be damaged due to overload or short circuit

Technical Information:

• Standard Conformity : IS/IEC 60898-1:2015
• Rated Current (In) : 6,10,16,20,25,32,40,63 AMP
• Rated Breaking Capacity : 10000A (10 kA)
• Rated Voltage (Un) :415V AC
• Rated Frequency : 50 Hz
• Dielectric Strength : 2000 V for 1 Minute
• Rated Insulation Voltage (Ui) : 660 V
• Rated Impulse Voltage (Uimp) : 4 kV
• Energy Limiting Class : Class 3
• Ambient Temperature(°C ) : -5°C to 55°C
• Degree of Protection : IP20
• Tripping Mechanism : Thermal and Magnetic
• Type Mounting : Snap on DIN rail at (35mm x 7.5mm)
• Connecting Terminals : 25mm²

Micron Features

• Tested from ERDA in accordance with IS/IEC 60898-1 and are ISI marked.
• CE marking fulfils the requirement of Global Standard.
• Protection against Over Load and Short Circuit.
• Environment friendly, meets the ROHS compliance as defined by the European Standard
• Shock Proof: Finger and Hand touch safe.
• All moulded parts made from fire resistance engineering plastic ensures protection against Heating and Strong impact.
• Watt Loss value are much lower than the specific values of IS/IEC Consumes less power, thus cost effective and energy saving.
• A quick make and Break trip free mechanism.
• Bi-connect terminals at both sides giving a choice of using either a busbar or a cable to make the connection.
• Better Arc Quenching values and Cooling system which ensure enhanced shot circuit performance.
• Positive Isolation.
• Suitable for Residential and Commercial applications.
