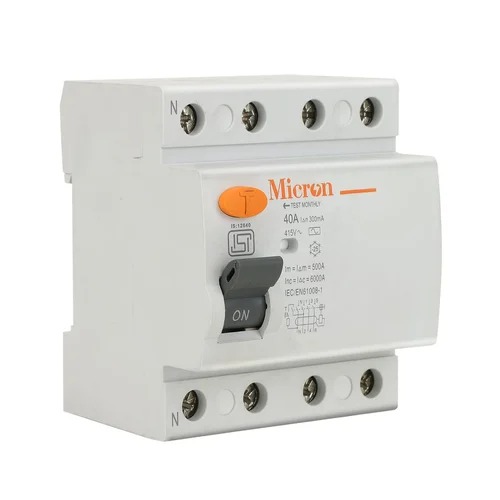

Micron Four Pole RCCB, Rated Voltage : 415V AC

Listing ID #7217459

Micron Residential Current Circuit Breaker (RCCB) is a crucial current sensing safety system that protects electrical appliances

Technical Information:

• Standard Conformity : IS 12640-1 & IEC 61008-1
• Rated Current (In) : 16,25,32,40,63 AMP
• Breaking Capacity : 6000 A ( 6 KA)
• Rated Voltage (Un) :415V AC
• Sensitivity (lln) : 30ma, 100ma, 300ma
• Dielectric Strength : 2000 V for 1 Minute
• Rated Insulation Voltage (Ui) : 660 V
• Rated Impulse Voltage (Uimp) : 4 kV
• Energy Limiting Class : Class 3
• Ambient Temperature(˚C ) : -5˚ to 55˚
• Degree of Protection : IP20
• Mounting : Snap on DIN rail at (35mm x 7.5mm)
• Connecting Terminals : 35mm²

 Features:

• Tested in accordance with IS:12640-1 & IEC 61008-1 and are ISI marked
• CE marking fulfils the requirement of global standard
• Environment friendly, meets the ROHS compliance as defined by the European Standard. Shock Proof: Finger and Hand touch safe.
• All moulded parts made from fire resistance engineering plastic ensures protection against Heating and Strong impact.
• Watt Loss value are much lower than the specific values of IS/IEC Consumes less power, thus cost effective and energy saving.
• Trip quickly when earth fault/ leakage current occurs and prevent from electric shock Test button ‘T’ is provided for Regular Inspection
• Simple and Robust operating mechanism.
• Bi-connect terminals at both sides giving a choice of using either a busbar or a cable to make the connection.
• Positive Isolation.
• Suitable for Residential & Commercial applications
