MICROPARTNER INDUSTRIAL MANIPULATOR

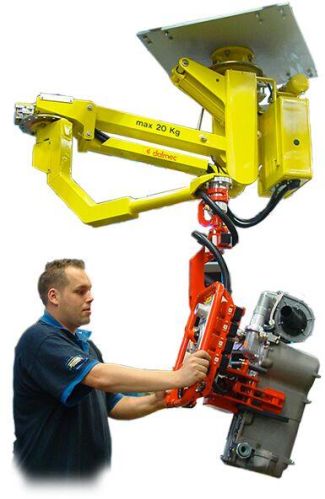

MICROPARTNER MI: INDUSTRIAL MANIPULATOR WITH ARTICULATED ARMS
Thanks to reduced dimensions, the MICROPARTNER MI is a particularly easy to handle lifting device. It’s designed to easily move medium-light, center and off-set loads in any direction. Equipped with special gripping tools, the operator can work quickly with effortless precision and in excellent ergonomic and safety conditions.
Operation
A pneumatic cylinder fed with compressed-air, combined with a transmission lever system, provides balance to the load weight applied.
The cylinder force is controlled through two pneumatic circuits. The first one always keeps the weight system balanced; the second keeps the weight load balanced. The operator can change the load level by applying a minimum force on the gripping tool or directly on the load.
Stainless steel version
Dalmec can manufacture the MICROPARTNER in stainless steel. The manipulator and the gripping equipments are built for cleanliness in the pharmaceutical, food, and chemical industries, as well as other sterile environments.
The structure is developed using AISI 304 stainless steel with a few parts in AISI 420421. Welding is mostly performed using MAG and MIG methods in an inert gas atmosphere. Major welds, from an aesthetic and functional standpoint, are ground and smoothed. Visible surfaces are polished and brush-finished.
Explosion-proof version in conformity with ATEX Directive
Dalmec can supply explosion-proof versions in conformity with the ATEX Directive, suitable for the installation of the manipulator in explosion-risk environments classified as zone 1 or 2.
The manipulators for the handling of bags and boxes equipped with electric pumps are also included.
The certification is made in our plant by the qualified Engineer of a Notified Body according to the ann. IX 949EC-ATEX Directive, which ensures the total conformity of the manipulator with the Directive.
