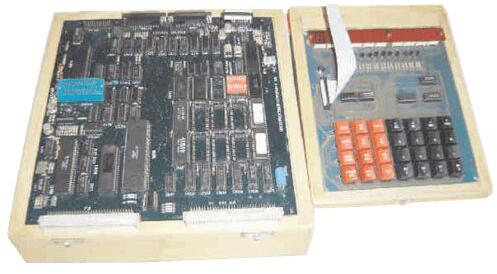

MC68000 CPU operating at 8 MHz.
– 32 KB ROM with Monitor FIRMWARE-TUTOR.
– EPROM expansion possible up to 64K maximum.
– 16 KB static RAM.
– RAM expansion possible up to 128KB.
– StandardIntelligent programming modes.
– Two RS-232 channels with jumper selectable baud rates from 75 to 192000.
– Five 8-bit parallel ports, 3 from 8255, 2 from 6821.
– 68230 PIT is used to provide an 816 bit parallel interface and a 24-bit timer. It is also used to provide a Centronics parallel printer port.
– Seven segment display & hex keyboard.
– On board single line Assembler and Disassembler.
– Interrupt function.
– MACSBUGVERSABUG command subset for debug functions.
– System address, data bus brought out on a 50 pin FRC connector and control bus brought on a 26 pin FRC connector for expansion and interfacing.
– Optional Macro Cross Assembler avaible for use on IBM compatible PC to assemble and download user programs.
– In-built power supply
– User’s Manual, Cables & Connectors.
