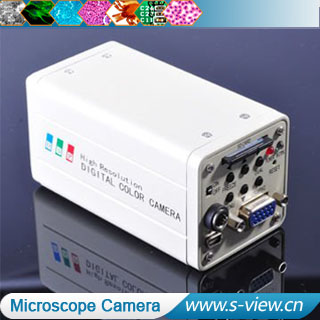

Microscope Camera

We offer 2.0mp c-mount vga output microscope camera
model: sxy-v20
it is easy to be connected to microscope � just put the vga output microscope camera into the optical eyepiece tube or connected with c-mount. The camera is controlled from a convenient stand-alone control box which is newly designed, operation is smooth and easy.
�2 megapixels resolution
�15 frames per second live image preview at full resolution
�display higher speed than usb camera
�auto white balance and auto exposure
�support three couples of cross lines
�specialized on industrial inspection and microscopes
sxy-v20
sxy-v20p
image sensor
13.2" cmos, 2.0m pixel
13.2" cmos, 2.0m pixel
max resolution
1600�1200
pixel size
3.6μm�3.6μm
2.8μm�2.8μm
sn ratio
>45db
sensitivity
1.0vlux-sec 550nm
adc
10bits
lens interface
standard ccs-mount
image frame rate
15fps @ 1600�1200; 15fps @ 1680�1050;
15fps @ 1440�900; 15fps @ 1280�1024;
15fps @ 1280�800; 15fps @ 1024�768;
30fps @ 800�600.
operating system
windows xp windows vista windows 7
output interface
vga video output
image store
no
4g sd card
control box
support
power supply
dc5v 1a
work temp.
�5°c to +60°c
size
40mm�40mm�90mm
weight
235gram
