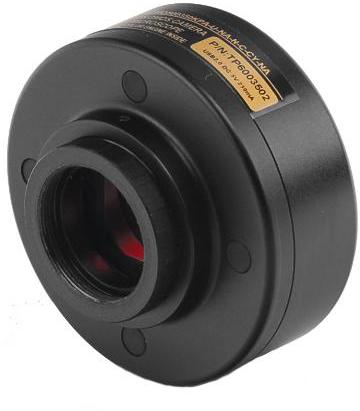

Microscope Camera

Sensor model:aptina mt9p001
scan mode:progressive
max. Resolution:2592 x 1944 (approx.5,040,000 pixels)
sensor size:1/2.5 (5.70mm(h) x 4.28mm(v), diagonal 7.13mm)
pixel size:2.2µm x 2.2µm
responsivity:0.53v/lux-sec(550nm)
dynamic range:66.5db
a/d converter:12-bit, 8-bit r.g.b to pc
sn ratio:40.5db
spectral range:400-650nm (with ir-filter)
frame size and rate:5fps @2592 x 1944, 18fps @1280 x 960, 60fps @640 x 480 (multiple speed level)
binning:1 x 1, 2 x 2, 4 x 4
exposure:electronic rolling snap(ers),0.21~2000ms,roi auto & manual
color rendering technique:ultra finetm color engine
white balance:one push roi white balance/ manual temp-tint adjustment
capture/control api:directshow, twain
capture mode:still picture and video
operating system:microsoft® windows® xp / vista / 7 (32 & 64 bit)
