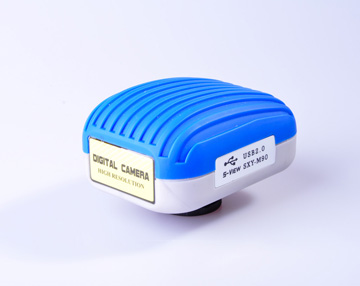

Contact SupplierWe are offering microscope digital camera.
Sensor type: color cmos
imaging sensor size: 12"
pixel size: 3.2μmx3.2μm
effective pixels: 2048x1536
max resolution: 2048x1536
sensitivity: 1.0vlux-sec 550nm
dynamic range: >43db
exposure controls: automatic
gain control: automatic
white balance: one shot automatic control
image frame rate: 11fps @ 2048x153615fps @ 1024×768;30fps @ 640×480
control interface: usb 2.0
lens mount: standard ccs-mount
control software operating system: windows xp, vista, 7 (32 bit and 64 bit)
power: usb 2.0 supported
operating temp: 0 to 50 °c
dimensions: 55mm×70mm×90mm
weight: 115g
application: education, industrial microscopy, live cell image, medical, semiconductor inspection, metrology
packing contents: 1) 3.0mp microscope eyepiece camera x1
2) usb 2.0 cable x1
3) cd with control software s-viewer and driver x1
4) camera user manual x1
optional accessories: 1) reducing lens 0.45x
2) adapter ring (23.2mm to 30mm)
3) adapter ring (23.2mm to 30.5mm).
