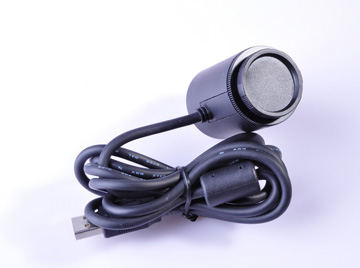

We are offering microscope digital eyepiece.
Sensor type: color cmos
imaging sensor size: 13.2"
pixel size: 3.6μm×3.6μm
effective pixels: 1280x1024
max resolution: 1280x1024
sensitivity: 1.0vlux-sec 550nm
dynamic range: >45db
exposure controls: automatic
gain control: automatic
white balance: one shot automatic control
image frame rate: 15fps @1280x1024;15fps@1024x768;15fps@800x600;30fps@640x480
control interface: usb 2.0
lens mount: standard ccs-mount
control software operating system: windows xp, vista, 7 (32 bit and 64 bit)
power: usb 2.0 supported
operating temp: 0 to 50 °c
dimensions: 33mm×33mm×55mm
weight: 90g
application: education, industrial microscopy, live cell image, medical, semiconductor inspection, metrology
packing contents: 1) 1.3mp microscope eyepiece camera x1
2) usb 2.0 cable x1
3) cd with control software s-viewer and driver x1
4) camera user manual x1
optional accessories: 1) reducing lens 0.45x
2) adapter ring (23.2mm to 30mm)
3) adapter ring (23.2mm to 30.5mm).
