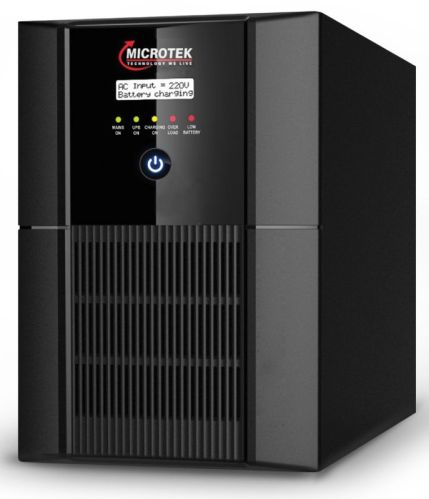

Microtek 3500+ MOSFET Jumbo UPS

Get Latest Price

Brand NameMicrotek
Mains Bypass /Switch OverRocker Bypass Switch Automatic from Mains to Backup and Backup To Mains
Dimensions (LxWxH)mm514x339x460
Narrow I/P Voltage Range (UPS Mode)(±10 V)180~260V
Supply TypeSupplier, Distributor
Preferred Buyer Location India only

View More Details

Send Enquiry

Company Information

Poweron

Nittuvalli, Davanagere, Karnataka

4.0/5

(1)

View Number

Member Since 1 Year
Nature of Business Distributor
GST No. 29AEJPV7461B1Z4

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameMicrotek
Capacity (KVA) / Rating (W)2.8/2240
Nominal Battery Voltage24V DC
Separate O/P with TDRAvailable with 1-Min. TDR (For Air-ConditionTeypre Loads)
Dimensions (LxWxH)mm514x339x460
Protections/DisplayLow Batt.Voltage,Batt.Overcharge/Reverse Polarity, Over Temp. Smart Overload Sense&Short Circuit/LED
Recommended Battery Type / Battery AHTall-Tubular / Flat-Plate Lead Acid Batteries / (80AH-200AH)™
UPS Overload /Short Circuit Protection≥110%/ ≥300%
Std. /P Vol. Range (Inv. Mode) (£10V)100~270V
Mains Bypass /Switch OverRocker Bypass Switch Automatic from Mains to Backup and Backup To Mains
Output Waveform / Power FactorPure Sinewave / 0.8
Transfer Time-Mains to Batt. (UPS Model)<10ms
Maximum Charging Current17A(±2A) Default. Settable down to 5A via Switch Selection
Gross Weight23.93 Kgs.
Battery ChargerBoost based PWM Controlled multistage ATM (Automatic Trickle Mode) Charging
Efficiency (Battery Mode)>71%
Input Brown Out Voltage (± 10V)100V
Output Freq. / Voltage (Batt. Model)50Hz ± 0.2 Hz / 180~230V(±10V)
Narrow I/P Voltage Range (UPS Mode)(±10 V)180~260V

Environmental Parameters: Operating Temperature: 0~45/ A°couCsti c Noise at 1 Mtr.: <60dB Relative Humidity: Max.95% non-condensing. Thermal Management: Integrated Cooling (Fan & Heat Sink)
