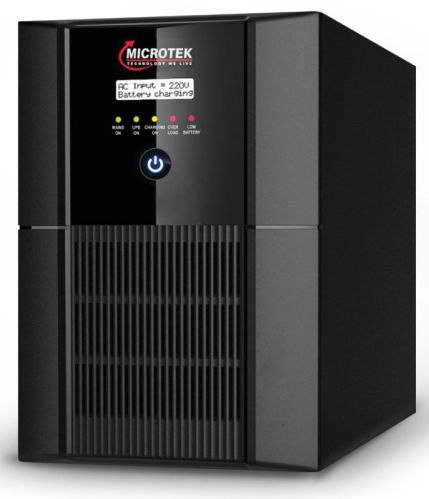

Microtek 3750+ MOSFET Jumbo UPS

Get Latest Price

Brand NameMicrotek
Output Freq. / Voltage (Batt. Model)50Hz ± 0.2 Hz / 180~230V(±10V)
Protections/DisplayLow Batt.Voltage,Batt.Overcharge/Reverse Polarity, Over Temp. Smart Overload Sense&Short Circuit/LED
Transfer Time-Mains to Batt. (UPS Model)<10ms
Supply TypeSupplier, Distributor
Preferred Buyer Location India only

View More Details

Send Enquiry

Company Information

Poweron

Nittuvalli, Davanagere, Karnataka

4.0/5

(1)

View Number

Member Since 1 Year
Nature of Business Distributor
GST No. 29AEJPV7461B1Z4

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameMicrotek
Output Waveform / Power FactorPure Sinewave / 0.8
Mains Bypass /Switch OverRocker Bypass Switch Automatic from Mains to Backup and Backup To Mains
Dimensions (LxWxH)mm514x339x460
UPS Overload /Short Circuit Protection≥110%/ ≥300%
Gross Weight27.19 Kgs.
Nominal Battery Voltage36V DC
Transfer Time-Mains to Batt. (UPS Model)<10ms
Recommended Battery Type / Battery AHTall-Tubular / Flat-Plate Lead Acid Batteries / (80AH-200AH)™
Efficiency (Battery Mode)>76%
Std. /P Vol. Range (Inv. Mode) (£10V)100~270V
Capacity (KVA) / Rating (W)3.2/2560
Separate O/P with TDRAvailable with 1-Min. TDR (For Air-ConditionTeypre Loads)
Narrow I/P Voltage Range (UPS Mode)(±10 V)180~260V
Protections/DisplayLow Batt.Voltage,Batt.Overcharge/Reverse Polarity, Over Temp. Smart Overload Sense&Short Circuit/LED
Maximum Charging Current17A(±2A) Default. Settable down to 5A via Switch Selection
Battery ChargerBoost based PWM controlled multistage ATM (Automatic Trickle Mode) Charging
Output Freq. / Voltage (Batt. Model)50Hz ± 0.2 Hz / 180~230V(±10V)
Input Brown Out Voltage (± 10V)100V

Environmental Parameters: Operating Temperature: 0~45/ A°couCsti c Noise at 1 Mtr.: <60dB Relative Humidity: Max.95% non-condensing. Thermal Management: Integrated Cooling (Fan & Heat Sink)
