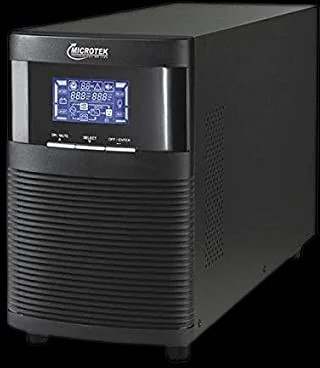

Microtek Low Frequency Online UPS

Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location India only

Microtek offers a Wide Range of Online UPS from 1KVA to 30 KVA dependent on World’s Latest Technology to meet the unforgiving Environmental and most exceedingly terrible Power Conditions for Applications from Small Office necessity to Space Critical Missions with a wide assortment of Backup Range from 5 minutes to 10 hours to address the issues of each person.

View More Details

Send Enquiry

Company Information

Powertune

Badlapur, Mumbai, Maharashtra

View Number

Member Since 3 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Nominal Voltage	208VAC/220VAC/230VAC
Frequency	40 Hz~55Hz @ 50 Hz system
Acceptable Voltage Range	165 ~285 VAC

OUTPUT
Nominal Voltage	208VAC/220VAC/230VAC
Voltage Regulation	± 1 %
Frequency Range (Synchronized Range) (Mains Mode)	45Hz~55Hz
Frequency Range (Battery Mode)	50 Hz ± 0.1 Hz
Overload Specs (Mains Mode)	110%- 120% : 30 MIN 120% – 130% : 5MIN >130% : 1 SEC
Overload Specs (Battery Mode)	110% – 120% : 3 MIN 120% – 130% : 1 MIN > 130% : 1 SEC
Current Crest Ratio	3 : 1
Harmonic Distortion	<= 3 % THD (Linear Load)
<= 5% THD (Non-Linear Load)
Transfer Time	AC to DC	Zero
Inverter to Bypass	Zero (Turn OFF / Common Fault)
Bypass to Inverter	< 5ms (Turn ON/ System Recovery)
Waveform (Battery Mode)	Pure Sine wave
EFFICIENCY
AC Mode	87.00%
Battery Mode	91%
EXTERNAL BATTERY
Recommended Battery Type	DEFAULT: VRLA / SMF BATTERY TUBULAR BATTERY: OK (WITH CHARGER CUT-OFF VOLT ADJUSTABLE FROM LCD DISPLAY)
Numbers	16
Charging Current (Max.)	Default: 8A±10%; Max: 2A, 4A, 8A (Adjustable)
Charging Voltage (Default)	Boost Voltage : 224Vdc +-1%, 14.0V/Battery
Float Voltage : 217.6Vdc +- 1%, 13.6V/Battery
INDICATORS
LCD	Load Level, Battery Level, AC Mode, Battery Mode, Bypass Mode, and Fault Indicators
ALARM
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding twice every second
Fault	Continuously sounding
PHYSICAL
Dimension, DxWxH(mm)	562 x 250 x 830
Net Weight (kgs)	62
ENVIRONMENT
Operating Temperature	0~50ºC (Battery life cycle will shorten when temperature is above 25ºC)
Humidity	0~95% (Non-Condensing)
Noise Level	Less than 50dB @ 1 Meter
MANAGEMENT
Modbus RS-232/RS485	Supports Windows® 2000/2003/XP/Vista/2008/7/8, Linux and MAC
Dry Contact	5 Signals: AC Failure, Low Battery, UPS Alarm, Bypass and UPS Fault
Optional SNMP	Power Management from SNMP Manager and Web Browser
Warranty	Two Years
