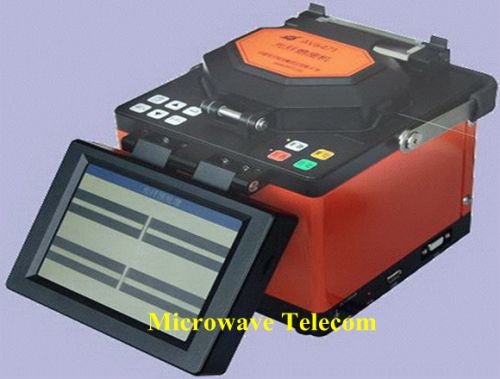

Microwave Fusion Splicer, Brand Name : Microwavetelecom

We are offering microwave fusion splicer.
Features
high-resolution true color 5.7 inch lcd display
the advanced core to core fiber profile alignment system(pas)
real time calibrating system, parameter needn’t be adjusted
x/y axes were displayed meanwhile, magnification up to 304 times
8 seconds splicing time, 30 seconds heat-shrinking
battery capacity was display in real time, precisely
built-in high capacity battery, support 220 times splicing and heating, to meet one days’ work
long electrode lifetime, up to 4000 times
the new wind-cover design, enhance the ability to prevent the dust & wind, max. Wind velocity of 15m/s
three splicing modes: auto, half-auto, manual
built-in super high-brightness led supply convenience for night work
auto calculate splicing loss
small bulk and light weight, only 2.8kg include battery
4000 results storage
usb data interface &vga
one button operation to finish results download or software update
close shield splice automatically, close heater lid heat automatically
one year warranty
specifications
model m-50
fiber types sm(itu-t g.652),mm(itu-t g.651),ds(itu-t g.653),nzds(itu-t g.655)
average splicing loss 0.02db with g.652, 0.01db with g.651, 0.04db with g.653 and g.655
splicing & heating time typical splicing time:8s; typical heating time:30s
return loss 60db or greater
fiber coating 100μm to 1000μm
fiber cladding 80μm to 150μm
fiber cleave length 8-16mm(coating diametergeneral specifications
power supply alternating current:100-240 50hz/60hz 30w, direct current:13.5v/4.5a
built in 11.1v li-ion battery charger and ac adaptor
battery life support 220 times splicing and heating on one charge(3.5hours) at least
battery lifetime cycle life up to 300-500 times, replaceable
tension test 2n
electrode lifetime >4000 times, replaceable
operating temperature -25℃-50℃
storage temperature -40℃-80℃
relative humidity 0 to 95％ (non-condensing)
work altitude 0~5000 meters
instrument weight 2.3kg(no battery ), 2.8kg(including battery)
dimensions(l x w x h) 160mm×150mm×140mm
package g.w/n.w 8.0/7.0kg
package (l x w x h) 500mm×350mm×400mm.
