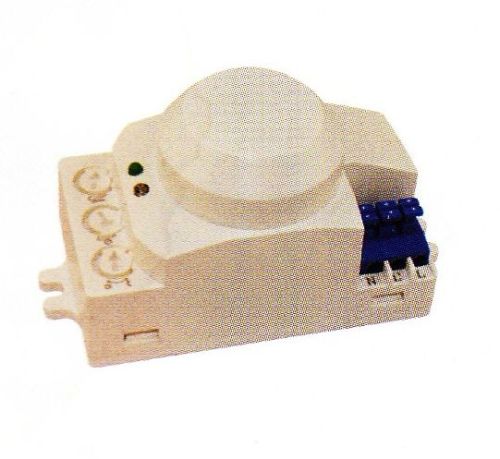

Microwave Occupancy Sensor

Our Microwave based Occupancy Sensors is a fully atuomatic indoor light controller capable of controlling upto 2000W incandescent or 1000W fluorescent lighting. This product is widely used in houses, hotels, schools & storage etc.

Features :

• 360 degree Ceiling installation
• Ceiling mount design.
• Photo sensor inside for smart control
• Run-on time adjustable
• Ambient lux setting adjustable
• Sensitivity adjustable
• 2000 W/ 625 W loading
• Support IR remote Control for On/Off Auto Control

Specifications :

• Operating Voltage – 90-270VAC/50Hz
• Power Consumption – 1 W Max.
• Loading – 2000W/625W for Incandecent, 1000W/312W for Fluorescent
• Detection Angle - 360°
• Detection Range - 1-8m radii @2.5m height
• Run on time setting – 5 sec to 40 min in 9 step
• Ambient Light settig – 10-2000 lux, falling on working plane.
• Operation Mode – Auto/On/Off
• Warm up time – Approximately 1 minute
• Output – Relay Output
• Mounting – Ceiling.

Environmental Specifications :

• Temperature range – 0°C to 60°C
• Isotaltion protection – Class 2

Dimension :

• Housing – Plastic
• Colour – White
• Size : Ceiling Mount
• 42(H)X95(D)mm (for circular casing)
• 82(L)X42(W)X42(H) mm (for rectangular casing)
• Weight : 160gm (For circular casing)
• 140gm (For rectangular casing)
