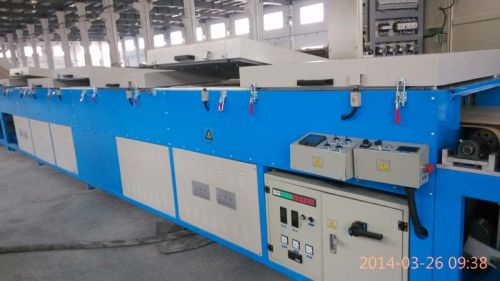

Microwave Vulcanized Rubber Machine

We are offering microwave vulcanized rubber machine.
Rubber extruder
1 model e90-06(e90-jst-07-00e90-dz-03-00)
2 usage extruding and mixing rubber and plasticizing, using extrusion molding with the head forming the rubber products.
3 size 2700×1200×1620(l*w*h)
4 extrusion system
5 feeding way side roller through a screw transmission power, feeding activly
6 feeding structure side roller gear and screw gear meshing transmission, with automatic lubricating device.
7 screw material 38grmoaca
8 screw hardness hrc65-68
9 steel bushing hardness hrc65-70
10 the depth of azotization 0.4—0.7mm
11 screw structure with the exhaust slot, good vacuum performance
12 "pressure control
" with pressure sensors, pressure adjustable protection value is 0 to 35 mpa
13 extruder fixed according to the situation ,can be straight, rotating and static way
14 ld ratio 16：1
15 screw diameter 90mm
16 "screw speed
" 0-55rmin
17 "maximum output
" about 330kgh
18 "temperature control system
"
19 heating sectionpower 3kw×4
20 cooling section number 1piece （side roller）
22 temp control mode electromagnetic valve automatic control of heating and cooling
23 circulating water pump brand wilo
24 cooling water pressure 0.15-2kgc㎡
25 temp accuracy ±1℃
26 "driving system
"
27 screw connected with reducer using spline connection
28 motor and reducer drive use 5 root 5 v belt transmission
29 hard tooth decelerate model zlyj250-20-1
30 motor power 55kw
31 total power 80kw
32 "speed adjustment mode
" "frequency control
"
